Best Shallow Water Boat Lifts at Lake of the Ozarks — True 24″ (No Fuzzy Draft Math!)
Quick Overview: Competitors often advertise “22 inches plus the draft of your boat.” That sounds shallow until you add a typical pontoon or tritoon draft and realize you may need 34–46″ of real water. LOTO Lift skips the fuzzy math. Our 4,000 lb shallow-water model can operate in a true overall 24″ of water in the best-case scenario — a bass boat or common small pleasure boat. We use the industry’s only 12″ tank (12″ tank + 3″ frame = 15″, then add your boat’s draft). Larger models use taller tanks and need more water. Capacity range is 4,000–10,000 lb. Built and serviced in Camdenton. Customers regularly drive hours from across the Midwest to pick theirs up.
If you’ve ever measured a shallow cove slip at the Lake of the Ozarks and wondered whether a boat lift will actually work when the water drops, you’re not alone. A lot of “shallow water” claims look great on paper… until the water level falls.
Why We Skip the Fuzzy Draft Math
Many manufacturers lead with a low number plus your boat’s draft. Draft is highly variable — it changes with fuel load, gear, and how many people are onboard. A typical pontoon or tritoon drafts somewhere between 12 and 24 inches. Add the advertised “22″” and you’re suddenly looking at 34–46″ of required water. That’s fuzzy math! And that’s not shallow for a lot of Lake of the Ozarks slips.
We tell you the real picture:
- The 4,000 lb shallow is the only size capable of 24″ operation — and that is a best-case number for bass boats and other common small pleasure boats.
- We are the industry’s only 12″ tank manufacturer. On that model the stack is roughly 15″ (12″ tank + 3″ frame) plus your boat’s draft.
- A 6,000 lb model uses 16″ tanks. The 7,700 lb and 10,000 lb models use 20″ tanks. Bigger lift + deeper-draft boat = more water needed.
- Boat draft and lift size change the formula. It is always case by case.
Transparency and truthfulness matter. If a company claims they can lift a heavy, deep-draft boat in 24″ of water, the numbers usually do not add up. A 280 Sea Ray, for example, commonly drafts 35–41″. Getting a boat that sits 3.4 feet deep onto a hoist that supposedly only needs 2 feet is mathematically improbable unless the boat has unusually low draft. That is fuzzy math again.
We would rather give you a truthful number for your boat than a headline that only works on the smaller hulls.
What Makes LOTO Lift Shallow-Water Models Different
We build the lowest-operating pneumatic floating systems in the industry. Here’s what you get:
- Best-case 24″ operating depth on the 4,000 lb model with bass boats and other small boats
- Capacity range: 4,000 lb – 10,000 lb
- Industry’s only 12″ tanks on the smallest shallow model (16″ tanks on 6,000 lb; 20″ tanks on 7,700 and 10,000 lb)
- Rectangular poly tanks — the most efficient shape for water displacement (the same reason river barges are square, not round)
- Hot-dipped galvanized frames (we make every attempt to keep steel as high as possible; on some shallow-water setups, all steel fully above the waterline is not feasible)
- Poly bushings in every moving part
- Bunks specially designed so V-hull boats glide on instead of wood and carpet grabbing and ripping
- Optional non-friction composite bunks
- Lockable deck-mount control unit with GFCI
- Bypass valve and exhaust hose
- Lifetime warranty on poly tanks
- Lifetime warranty on the galvanized frame
- 5-year warranty on arms, pitman arms, and axles
- 1-year service warranty
These lifts stay usable during winter draw-downs and droughts when there is still enough water for your specific boat and lift size. We’ve installed them at the Lake of the Ozarks, Pomme de Terre Lake, the Mississippi River near St. Louis, and Table Rock Lake.
The Unique Drop-Tank V-Drive Option for Wake & Surf Boats
Most shallow-water lifts struggle with modern wake and surf boats because the engine sits at the stern and the prop shaft runs in a “V” configuration. We solved this with a purpose-built drop-tank V-drive setup.

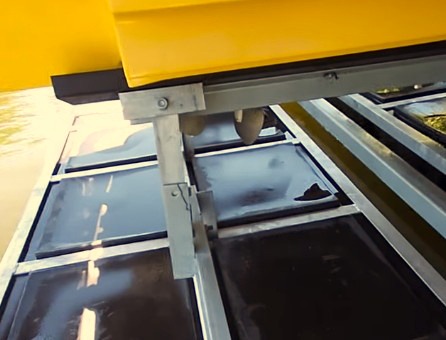

The drop tank is specifically engineered for V-drive / reverse-drive boats so the lift can still achieve full shallow-water performance without the prop or lower unit hanging up. This is a truly unique and highly effective option for surfers who want to keep their boats in shallow slips. If you run a wake boat or surf boat and your slip is limited, ask us about the drop-tank configuration — it’s one of the biggest reasons customers drive from hours away.
Why Floating Pneumatic Lifts Win in Shallow Coves
Floating boat lifts rise and fall with the water. They need far less fixed underwater structure than traditional legged or cable lifts, so they’re kinder to soft or silty bottoms and adapt naturally when the lake level changes. In the protected or gradually sloping coves common around the Lake of the Ozarks, this combination of low profile + floating design is simply more practical day after day.
- If you’d like a deeper look at the mechanics, read more about how floating boat lifts work.
Lake of the Ozarks Water Levels and Permits
At Lake of the Ozarks, Ameren Missouri (under a FERC license) regulates shoreline structures. Their operating license allows normal seasonal fluctuations down to 650 feet and emergency drawdowns to 645 feet. Any shallow-water boat lift must be configured to handle these drops so the hull or lift structure does not ground out. Adding or modifying a lift requires an Ameren permit.
Real-World Proof
Customers regularly drive from Kansas, Illinois, Arkansas, Oklahoma, and farther across the Midwest just to pick up a LOTO Lift shallow-water model. When people are willing to haul a lift that far, it usually means the local alternatives didn’t solve their depth problem with honest numbers.
Quick Comparison: True Operating Depth
| Claim Style | Advertised Number | What It Usually Means | Transparency |
|---|---|---|---|
| Competitor “X″ + draft” | 22″ + draft | Often 34–46″ once a pontoon/tritoon draft is added | Low |
| LOTO Lift 4,000 lb Shallow | True 24″ best-case | Bass boats and small pleasure boats only; 12″ tank + 3″ frame + draft | High |
| LOTO Lift 6,000–10,000 lb | More water required | 16″ or 20″ tanks + frame + your boat’s draft | High |
(We measure your slip and boat on site. Draft and lift size always change the formula.)
Frequently Asked Questions
How shallow can a LOTO Lift actually go?
The 4,000 lb shallow model can operate in 24″ of water in the best-case scenario with a small fishing boat or bass boat. That is the only size we claim at 24″. Larger lifts use taller tanks and need more depth. Your boat’s draft is part of the equation.
Why do you say “best-case” instead of promising 24″ for every boat?
Because draft and lift size change the number. A bigger boat that already sits 35–41″ in the water cannot magically load onto a 24″ lift. We would rather be precise than confusing.
What about wake boats or V-drives?
We offer a dedicated drop-tank V-drive option. Our bunks also help V-hulls glide on instead of grabbing like wood and carpet often do.
Will it still work when the lake drops in the winter?
If you still have enough water for your boat and lift combination, yes. The floating design moves with the level. Ameren’s license allows drops to 650 feet (645 in emergencies), so we size for that reality.
Do you only serve the Lake of the Ozarks?
We are based in Camdenton and specialize in Lake of the Ozarks conditions, but we ship and install across the region, including Table Rock Lake, Lake Pomme de Terre, Truman Lake, Grand Lake in Oklahoma, and many more! Plenty of Midwest customers pick up at our shop. Learn more about our boat lift installation process.
Are the tanks and frame really lifetime?
Yes. Lifetime on the rotationally molded poly tanks and the hot-dipped galvanized frame. On shallow-water models we get the steel as high as possible; keeping every bit of steel above the waterline is not always feasible.
Looking for other boat elevator solutions?
We also offer the TR Model for tight slips, quality used boat lifts for sale, and a full line of PWC / jet ski lifts.
Ready for a lift that gives you the real number instead of fuzzy draft math?
Call us at (573) 873-6058 or contact us here and we’ll walk through your slip depth, hull, and whether the 4,000 lb 24″ setup or a larger shallow model is the right fit. Local manufacturing, local service, and honest measurements — that’s how we do it at LOTO Lift.
(See more pics on our Picture Galleries page.)
Watch one of our Shallow Water Boat Lifts in operation.
